BEAMFORMING FEATURES
- True Frequency Invariant Beamformer: Gain Response is unvarying across frequency
- Beam widths: 35°, 45° and 55° with Frequency Invariance
- Beamforming Range: 100 Hz to 20 KHz
- Deep Sidelobes down to 45 dB of Depth
- Beam Pointing Accuracy of 0.2 dB
- Dynamic Range: 20 Hz to 20 KHz, > 70 dB
- Number of Beams: 6, 8, 10, 11, or 12
- Room Patterns: Full Circle/Square, Rectangular, Semi-Circle/Classroom
- Coverage Sizes: 24 sizes from Small 10 ft x 10 ft up to Extra Large 36 ft x 20 ft
- Ceiling Height: Configurable with CONSOLE AI from 7 ft to 20 ft
AMPLIFIER OUTPUT
- Type: 5.08mm Black Header, Phoenix type Euroblock
- Audio: 4 channels
- Output Power: 4x15W Max, 8 Ω load, or 2x30W, 4Ω load, bridged
- 2x30W, 4Ω load, parallel bridge-tied load
- Frequency Response: 20Hz – 22kHz, +/- 0.5dB
CONFIGURATION
- Acoustic Echo Cancellation (AEC) on/off
- Noise Cancellation (NC) on/off
- Automatic Level Control (ALC) on/off
- Automatic Gain Control (AGC)
- Gain adjust
- Mute on/off
SOFTWARE
DIMENSION & WEIGHT

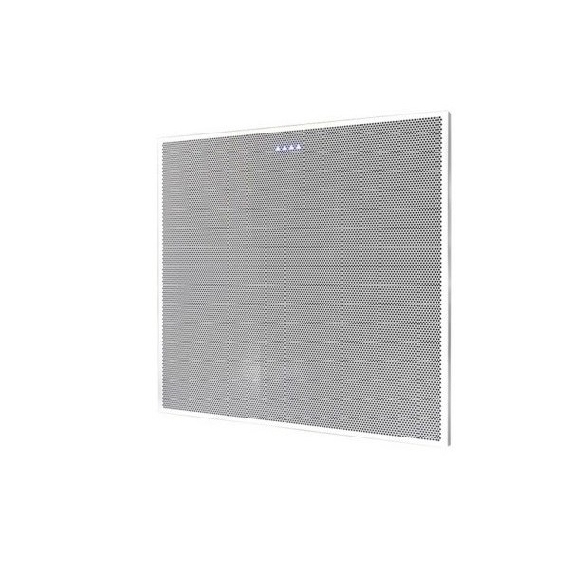

- 24-in BMA CT (WxDxH): 23.72 x 23.72 x 2.13" (602.5 x 602.5 x 54.1mm)
- 600mm BMA CT (WxDxH): 592.5 x 592.5 x 54.1mm (23.33 x 23.33 x 2.13")
- Product Weight: 9lb (4.1kg)
- Shipping Weight: 12.85lb (5.83kg)
MOUNTING
- Ceiling mount (24 in or 600 mm drop-ceiling grid)
- VESA©-mount ready, 100mm hole pattern, M4x10mm
|
P-LINK PERIPHERAL BUS
- Ports Type: RJ-45
- P-Link In & Out: Proprietary Peripheral Bus
- P-Link Power
- 56V 36W IEEE 802.3at compliant devices or equivalent, Mode B
- Cable: Solid core 24AWG, factory terminated Cat6
- Distance
- Normal distance mode: Up to 200 ft (60 m)
- Long distance mode: To be supported with a future
firmware upgrade.
PoE ++ PORT
- Port Type: RJ45 PoE power
- Power on all pairs
- 56V 90W IEEE 802.3bt Compliant Devices or equivalent, Mode A and B, Midspan
- Cable: solid core, 23AWG, factory terminated Cat6
PoE REQUIREMENTS
- No speakers: 36W PoE, connected via P-Link or PoE++
- Speakers: Requires 56V 90W IEEE 802.3bt PoE, must be via direct PoE++ port on the BMA 360
POWER SELECTION
POWER AND THERMAL
- Power Source: PoE injector or equivalent
- Power Consumption:
- 100-240VAC, 50/60 Hz
- 23 Watt typical without speaker amp
- 55W at 1/3 power x 4 @ 1kHz
- Thermal: 270 BTU/hr at max power
- Operating Temperature: 14°F/-10°C to 104°F/40°C ambient temperature
|
