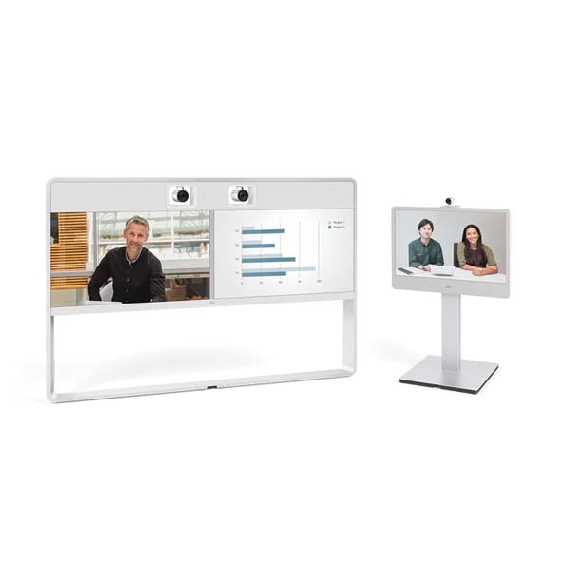

Cisco TelePresence MX Series


Cisco TelePresence MX Series提供一個絕佳的使用經驗,拋棄遙控器,觸控式螢幕提供最理想的人機界面 提供更強的終端處理能力,更豐富的視音訊介面 4方內置全編全解MCU


型錄下載 線上諮詢

產品特色

全新的MX具備如下優勢和特色:

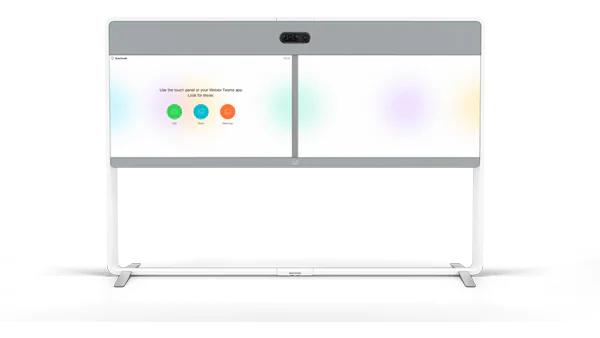

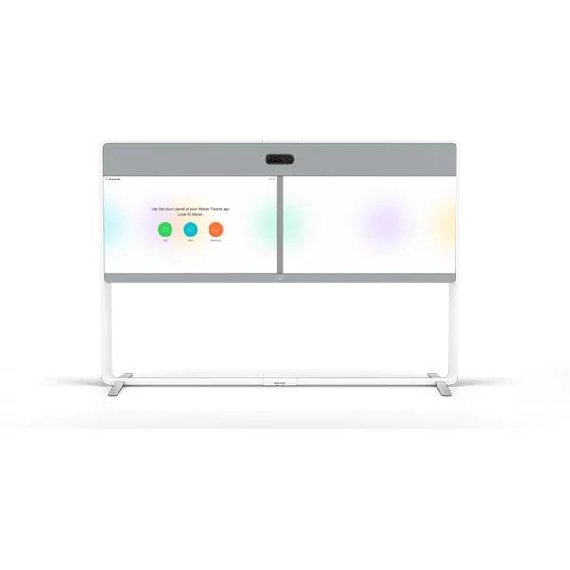

Cisco TelePresence MX700 and MX800 Series 思科網真MX700和MX800系統提供了一個卓越的視頻和音頻體驗。

該系統結合了美麗的設計和強大的功能集成到一個全功能於一身的解決方案,適用於中到大型會議室。

  • MX800採用70英寸LED螢幕 MX700採用了55英寸雙LED螢幕 可選擇支援1080p60
  • 20倍變焦鏡頭或另外選配俱有聲音追蹤的智能雙鏡頭頭
  • 直觀的思科網真螢幕支援十點觸控
  • 提供了一個易於使用的界面 壁掛式或落地式(獨立式和壁掛固定落地式選項)
  • 高達1080p60的主視頻和1080p30的內容的HD協作 H.264 SVC和H.265 可選
  • 1080p30的高清嵌入式思科多點會議個別轉碼 支援四個同步視頻輸入,方便協同合作

Software compatibility

Cisco TelePresence MX700 and MX800 Single

●  Cisco TelePresence Software Version TC 7.2 or later

●  Cisco Collaboration Endpoint Software 8.0 or later

Cisco TelePresence MX800 Dual

●  Cisco TelePresence Software Version TC 7.3.1 or later

●  Cisco Collaboration Endpoint Software 8.0 or later

Components

Fully integrated unit including:

●  Codec

●  Display

●  Camera (2 cameras as option; 2 cameras are standard for MX800 Dual)

●  Loudspeakers

Cisco TelePresence Table Microphone 60 (two microphones are included in base package)

Cables included: DVI-I-to-VGA cable with Euroblock to 3.5-mm jack audio cable, HDMI to HDMI, LAN cable, and power cable

Display

Cisco TelePresence MX700:

●  2x 55-in. (1.4m) TFT-LCD monitor, edge-lit LED

●  Resolution: 1920 x 1080 (16:9)

●  Contrast ratio: Typical 4000:1

●  Viewing angle: +/-178 deg

●  Response time: Typical 8 ms

●  Brightness: Typical 450 cd/m2

Cisco TelePresence MX800 Single:

●  70-inch TFT-LCD monitor, edge-lit LED

●  Resolution: 1920 x 1080 (16:9)

●  Contrast ratio: Typical 4000:1

●  Viewing angle: +/- 176 deg

●  Response time: Typical 8 ms

●  Brightness: 350 cd/m2

Cisco TelePresence MX800 Dual:

●  2x 70-inch TFT-LCD monitor, edge-lit LED

●  Resolution: 1920 x 1080 (16:9)

●  Contrast ratio: Typical 4000:1

●  Viewing angle: +/- 176 deg

●  Response time: Typical 8 ms

●  Brightness: 350 cd/m2

PC and second-source video input

●  DVI-I

●  Two HDMI (if Dual camera option is installed, only one HDMI)

●  One standard definition (composite or S-video)

Supported PC input resolutions

SVGA (800 x 600) up to 1080p (1920 x 1080)

Camera overview

Cisco TelePresence MX700 and MX800

●  20x total zoom (10x optical, 2x digital zoom)

●  Motorized +12°/-14° tilt (+up, - down, camera POV), +60/-90° pan (+ right, - left, camera POV)

●  80° horizontal field of view

●  48.8° vertical field of view

●  F 1.5

●  Resolutions: 1080p60 and 720p60

●  Automatic or manual focus, brightness, and white balance

●  Far-end camera control

●  Camera control over Ethernet

●  Focus distance 3.28 ft (1m) to infinity

Audio system

●  Integrated full-range multichannel and bass speakers

●  200W amplifier system pr screen

●  See table 3 for codec audio capabilities

User interface

Cisco TelePresence Touch 10 interface (Reference Touch 10” DataSheet)

●  10 inch projected capacitive touch screen

●  Resolution: 1280 x 800

Language support

English, Arabic, Catalan, Czech, Danish, Dutch, Finnish, French, German, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazilian, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish.SW Version TC7

System management

●  Support for the Cisco TelePresence Management Suite

●  Total management via embedded, Telnet, SSH, XML, and SOAP

●  Remote software upload via web server, SCP, HTTP, and HTTPS

●  One RS-232 for local control and diagnostics

●  Support for Cisco Telepresence Touch 10

Directory services

●  Support for local directories (My Contacts)

●  Corporate directory (through CUCM and Cisco TMS)

●  Server directory supporting LDAP and H.350 (requires Cisco TelePresence Management Suite)

●  Call History with received, placed and missed calls with date and time

MX300 & MX200 G2 規格表

Product compatibility

Fully compatible with standards-compliant telepresence and video systems

Software compatibility

Cisco TelePresence MX300 G2

Cisco TelePresence Software Version TC 7.0 or later

Cisco Collaboration Endpoint Software Version 8.0 or later

Cisco TelePresence MX200 G2

Cisco TelePresence Software Version TC 7.2 or later

Cisco Collaboration Endpoint Software Version 8.0 or later

Components

Fully integrated unit including:

●  Codec

●  Display

●  Camera

●  Integrated microphone and loudspeakers

Cisco TelePresence Table Microphone 20 (two microphones are shipped with the MX300 G2, and one with the
MX200 G2)

Cables including DVI-I-to-VGA cable, 3.5-mm jack audio cable, LAN cable, and power cable

Display

Cisco TelePresence MX300 G2:

●  55-in. (1.4m) LCD monitor, edge LED backlight

●  Resolution: 1920 x 1080 (16:9)

●  Contrast ratio: Typical 4000:1

●  Viewing angle: +/-178 deg

●  Response time: Typical 8 ms

●  Brightness: Typical 450 cd/m2

Cisco TelePresence MX200 G2

●  42-inch LCD monitor, edge LED backlight

●  Resolution: 1920 x 1080 (16:9)

●  Contrast ratio: Typical 1300

●  Viewing angle: +/- 178 deg

●  Response time: Typical 8 ms

●  Brightness: 450 cd/m2

PC and second-source video input

●  DVI-I

●  Two HDMI

Supported PC input resolutions

SVGA (800 x 600) to 1080p (1920 x 1080)

Camera overview

Cisco TelePresence MX300 G2:

●  4x optical zoom (8x with digital)

●  Motorized +15°/-25° tilt, +/-90° pan

●  72° horizontal field of view

●  43.5° vertical field of view

●  Resolutions: 1080p60 and 720p60

●  F 1.7

Cisco TelePresence MX200 G2:

●  2.5x optical zoom (5x with digital*)

●  Motorized +5°/-25° tilt, +/- 30° pan

●  83° horizontal field of view

●  51.5° vertical field of view

●  Resolutions: 1080p60 and 720p60

●  F 2.0

●  Automatic or manual focus, brightness, and white balance

●  Far-end camera control

●  Focus distance 0.98 ft (0.3m) to infinity

Audio system

●  Integrated full-range and bass speakers

●  Integrated full-range microphone

●  Support for two Cisco TelePresence Table Microphone 20 microphones

●  Mini jack PC audio input

●  Mini jack audio output

User interface

Cisco TelePresence Touch 10 interface

●  10-inch projected capacitive touch screen

●  Resolution: 1280 x 800

Weight

Cisco TelePresence MX300 G2 main unit with (all weight without packaging):

●  Floor stand: 108.7 lb (49.3 kg)

●  Wall mount: 84.9 lb (38.5 kg)

●  Wheel base: 96.1 lb (43.6 kg)

●  Main unit only: 77.2 lb (35 kg)

Cisco TelePresence MX200 G2 main unit with (all weight without packaging):

●  Floor stand: 108.7 lb (36.3 kg)

●  Table stand: 56.2 lb (25.5 kg)

●  Wall mount: 56.2 lb (25.5 kg)

●  Wheel base: 73 lb (33.1kg)

●  Main unit only: 52.9 lb (24 kg)

Physical dimensions and weight of packaging
(H x W x D)

Cisco TelePresence MX300 G2:

Consolidated package size:

48.9 x 57.9 x 25 in.

(1241 x 1470 x 635 mm)

Shipping weight with:

●  Floor stand: 200.6 lb (91.2 kg)

●  Wall mount: 176.4 lb (80.0 kg)

●  Wheel base: 180.8 lb (82.8 kg)

Cisco TelePresence MX200 G2:

Consolidated package size:

42.6 x 53.5 x 28.2 in.

(1081 x 1360 x 716 mm)

Shipping weight with:

●  Floor stand: 149.9 lb (68.0 kg)

●  Wall mount: 127.9 lb (58.2 kg)

●  Wheel base: 143.3 lb (65.4 kg)

●  Table stand: 134.5 lb (61.2 kg)
