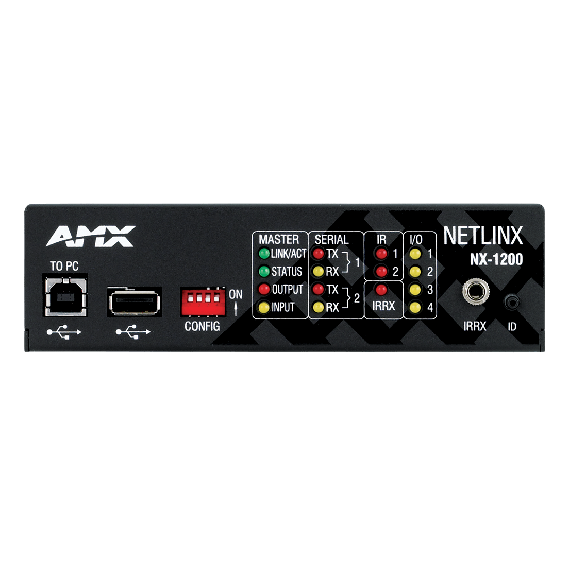

AMX NX-1200


The NX-1200 / NetLinx® NX Integrated Controller is a programmable network appliance specifically designed to control AV and building technology using multiple analog and digital formats. The NX-1200 provides a scalable platform for the future by combining high performance, backward compatibility and extensive network security features. The NX-1200 is designed to control and automate a variety of devices in single rooms or multiple small rooms and is capable of supporting devices with a variety of communication formats.


線上諮詢

產品特色

  • IPv6 – Supports Internet Protocol version 6 (IPv6), the communications protocol that provides an identification and location system for computers on networks and routes traffic across the Internet
  • IEEE 802.1X – Supports IEEE Standard for Port-based Network Access Control with the ability to grant or deny network access to devices wishing to attach to a LAN based on credentials tied to the device rather than to a user
  • X.509 Certificate Services – NX supports customer-provided certificates for access to protected networks.
  • IPv6 and wired 802.1x – Supports modern networking standards for internet protocol IPv6 and port-based Network Access Control utilizing X.509 certificates for access to protected networks
  • Full LDAP Integration – Supports multiple user-defined login groups for accessing the master, as well as provides an AMX programmer the capability to require network login to access certain areas of the touch panel
  • High Performance Architecture, Flexible Programming Platform (RPM, NetLinx and Java) – Easily scalable to support a wide range of applications for today and tomorrow
  • Full Line Compatible (Backwards and Cross-Compatibility) – Standardized port numbers and new configuration import/export tools mean fewer coding changes
  • TLS / SSH Client – Provides NetLinx programmers the ability to manage secure port TLS and SSH communications with a remote device or server
  • Cryptographic Support – In accordance with FIPS 140-2, a U.S. government computer security standard used to accredit cryptographic modules for the protection of sensitive or valuable data
  • Network Syslog – Supports standard device logging to a syslog server
  • Enhanced Diagnostics On Serial and IR Ports – Provides real time error feedback when Serial and IR ports are disconnected or improperly wired
  • File Import / Export From USB Drive – Backup and restore configuration data, program files, and update firmware from a standard USB flash drive
  • Hardware / Software Built for 24/7/365 Operation – Provides outstanding reliability and improved diagnostics
  • Ultra-Fast 1600 MIPS processor
  • 512 MB Onboard RAM
  • 1 M Non-Volatile Memory
  • 4 GB SDHC FLASH Memory
  • 1 RU x 1/3 Rack Space

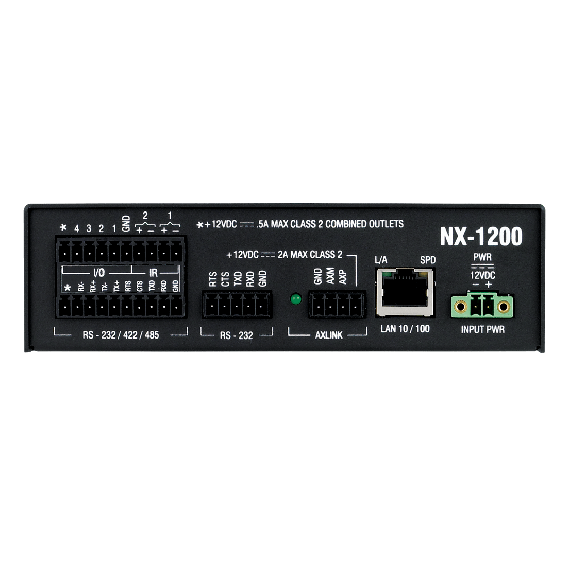

  • 1 AXLink Interface
  • 1 10/100 LAN Interface
  • 4 Digital I/O Ports
  • 1 RS232/422/485 Port
  • 1 RS232-Only Port
  • 2 IR/Serial Output Ports
  • 1 IR Receiver Port
