Cisco (限註冊cisco交換機)

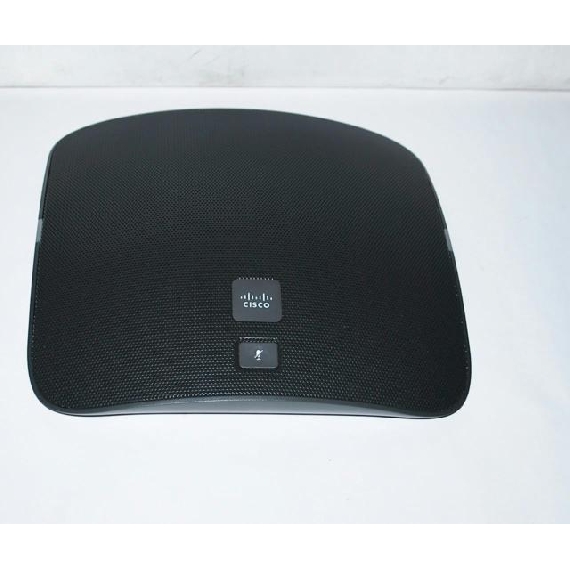

Cisco Unified IP Conference Phone 8831


註冊在Cisco Unified Communications Manager和Business Edition系統上的電話會議主機,會議空間較大時,可透過菊鍊連接,同時使用兩台電話會議主機+兩顆延伸麥克風。


型錄下載 線上諮詢

產品特色

  • IP會議電話8831是一個可擴展的電話會議解決方案,可透過菊鍊使用兩個單元外,可以另外延伸一組(兩隻)有線擴展麥克風

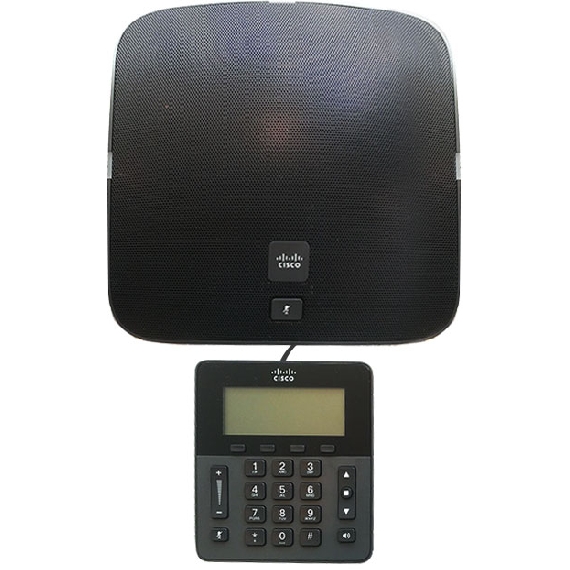

  • IP會議電話8831的設計,將用戶使用經驗放在第一位。 它提供了一個分離的撥號控制面板,需要控制或撥號時不必移動整個單元。 它還可以從各方面輕鬆查看設備靜音狀態。
  • 可註冊在Cisco Unified Communications Manager和Business Edition系統上

<無線延伸麥克風台灣無販售>

Table 1 lists the features and benefits of the Cisco Unified IP Conference Phone 8831.

Feature

Specification

Features

Superior wideband acoustics

●  160 Hz to 20 kHz, +/-3 dB.

●  The latest in wideband codecs for maximum voice bandwidth.

●  Enhanced speech quality and speaker recognition.

Output

92-dB SPL peak output*

Expanded room coverage

●  160-degrees conical pattern provides even coverage of listening area.

●  Four Hemi-Cardioid microphones are perfectly spaced so that they combine to provide a 180-degree pick-up pattern around the device. Speech is captured at the same level at all points around the Cisco Unified IP Conference Phone 8831.

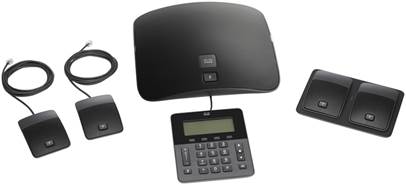

●  Ability to grow to fit a variety of room needs.

◦   Small Office (base unit)

◦   Standard Conference Room (base unit and 2 wired or wireless extension microphones)

◦   Boardroom (daisy chaining two base units)

◦   Large Boardroom (daisy chaining two base units and 2 wired or wireless extension microphones)

Microphone Accessory Options

Wired microphone

This microphone extends the operational range of the Cisco Unified IP Conference Phone 8831 with even coverage around the periphery of the device with 7 feet of additional reach.

Wireless microphone

DECT wireless microphone for the Cisco Unified IP Conference Phone 8831 provides additional coverage with the added flexibility of 300 feet of range.

Power Features

IEEE 802.3af line power

Local power supply is not required.

Cisco Power Cube 3

This power cube uses a standard Cisco Unified IP Phone Power Supply for non-Power over Ethernet (PoE) deployments. It is required for daisy chaining two units together.

Call-Control Support

Cisco Unified Communications Manager

The phone supports Cisco Unified Communications Manager (Cisco UCM) Releases 8.5(1), 8.6(2), 9.0, and later.

Cisco Business Edition 3000

The phone is supported on the Cisco Business Edition 3000 Releases 8.6(1) and later.

Cisco Business Edition 6000

The phone is supported on the Cisco Business Edition 6000 Releases 8.6(5) and later.

Cisco Unified Communications Manager Express

The phone is supported with CME 10.0 and above. On IOS 15.4(1)T and later with Fast Track Support.

Cisco Hosted Collaboration Solution

The phone is supported with 8.6(2) and later (using supported UCM versions above).
